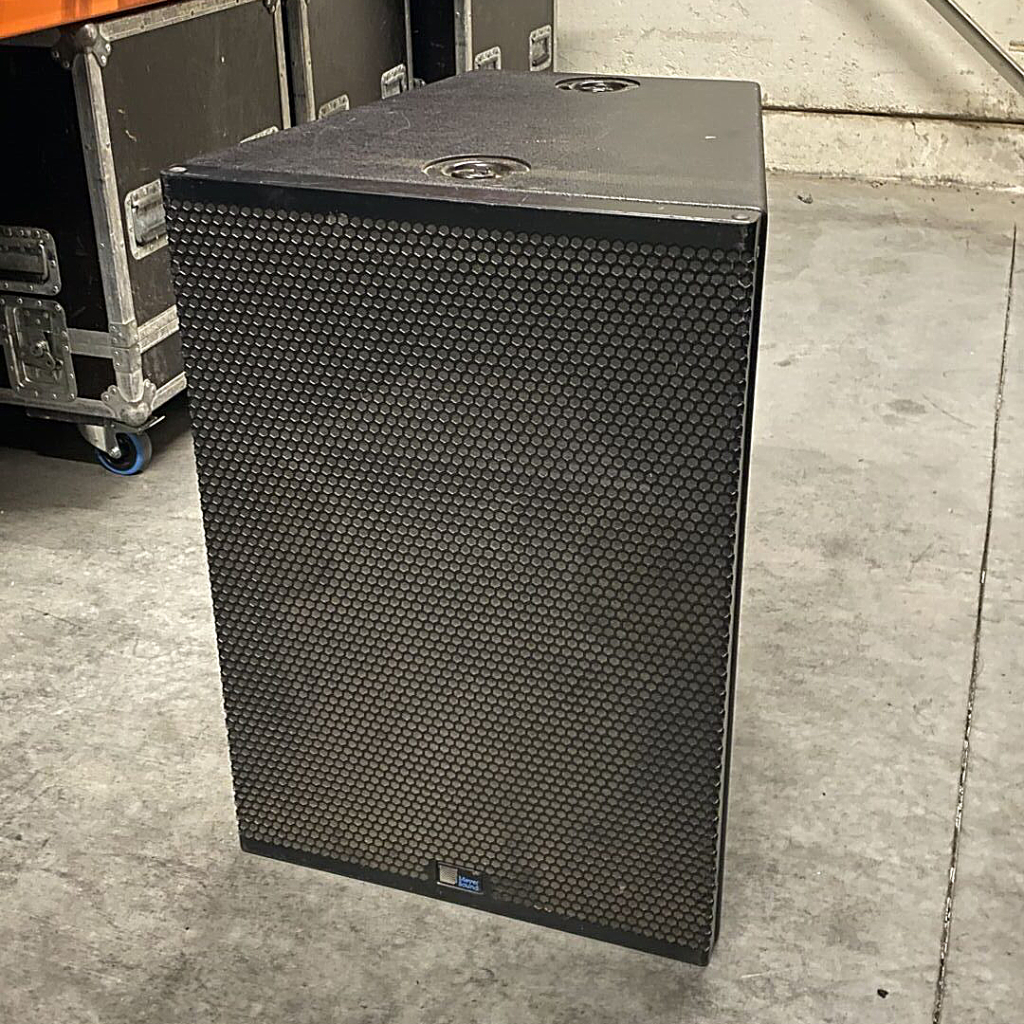

Meyer Sound CQ-1: The Compact Loudspeaker That Delivers Big on Precision and Power
When sound designers and AV integrators need precise coverage, high fidelity, and reliable output, they often turn to the Meyer Sound CQ-1. As one of Meyer’s most trusted self-powered, point-source loudspeakers, the CQ-1 strikes the perfect balance between compact form factor and commanding performance.
Whether you’re outfitting a performing arts venue, enhancing a house of worship, or reinforcing a conference space, this speaker offers consistent clarity—even in acoustically challenging environments.
What Is the Meyer Sound CQ-1?
The CQ-1 is a self-powered, wide coverage loudspeaker featuring Meyer’s signature constant-Q horn design. It delivers uniform dispersion and high output, making it ideal for applications where even sound distribution is critical.
Specifications at a Glance:
-
Coverage Pattern: 80° horizontal × 40° vertical
-
Frequency Range: 40 Hz – 18 kHz
-
Peak SPL: 136 dB
-
Drivers: 15” LF cone driver, 4” diaphragm HF compression driver
-
Amplifier: Class AB/H, bi-amplified self-powered system
-
Dimensions: 28″ H × 20″ W × 21.6″ D
-
Weight: 145 lbs (65.8 kg)
With its tight dispersion, smooth phase response, and high output, the CQ-1 is still a staple in touring, installation, and corporate AV projects worldwide.
Why Audio Pros Still Rely on the CQ-1
Wide, Controlled Dispersion
The CQ-1’s constant-Q horn provides consistent 80° horizontal coverage, ensuring that audio reaches your audience evenly from front to back, side to side.
High SPL Without Distortion
At 136 dB peak output, it offers concert-grade sound levels—without the fatigue or harshness often found in lesser systems.
Self-Powered Convenience
No amp racks. No complicated external processing. Simply feed signal and power, and the CQ-1 takes care of the rest.
Precision Matched Components
Each driver and amplifier is perfectly tuned at the factory, ensuring that every unit delivers identical tonal character and performance.
Great for Voice and Music
Thanks to its flat phase and frequency response, this speaker performs equally well for spoken word clarity and full-range music playback.
Ideal Applications for the Meyer CQ-1
| Environment | Use Case |
|---|---|
| Performing Arts Centers | Front of house or under-balcony fills |
| Houses of Worship | Main or distributed audio zones |
| Large Boardrooms | Full-range AV and presentation reinforcement |
| Multi-purpose Halls | Mobile or semi-permanent FOH setups |
| Theaters & Auditoriums | Stage fills, sidefills, or ceiling arrays |
CQ-1 vs. CQ-2: What’s the Difference?
| Feature | CQ-1 | CQ-2 |
|---|---|---|
| Coverage Pattern | 80° horizontal × 40° vertical | 50° horizontal × 40° vertical |
| SPL (Peak) | 136 dB | 136 dB |
| Best Use | Wide coverage applications | Focused, long-throw needs |
| Common Role | Mains, fills | Balcony or distance zones |
Choose the CQ-1 for broader horizontal coverage, or the CQ-2 when tighter directionality is needed.
Meyer Technology Inside the CQ-1
-
TruPower™ Limiting: Prevents driver damage while preserving dynamic range
-
Bi-Amplified Class AB/H: Separate amplification for HF and LF ensures clarity
-
Phase-Corrected Crossover: Blends frequencies smoothly with zero artifacts
-
Power Factor Correction: Guarantees stable operation on varying AC sources
These features make the CQ-1 both technically advanced and incredibly dependable.
Why the CQ-1 Has Stood the Test of Time
-
Consistent coverage and tonality, box after box
-
Fast deployment with minimal calibration needed
-
Built-in protection and thermal management
-
Flies or stacks with ease, offering full rigging options
-
Compatible with Meyer subs like the 500-HP, 600-HP, or 700-HP
Whether you’re using one or a dozen, the CQ-1 integrates seamlessly into any Meyer-based system.
Where to Buy the Meyer Sound CQ-1
Looking for authentic CQ-1 units with full support? Head over to Sasphonik for:
-
Genuine Meyer loudspeakers
-
Full tech support and product matching
-
Rigging accessories and replacement components
-
Consultation on legacy and hybrid sound systems
About Meyer Sound Laboratories
Founded in 1979, Meyer Sound is the pioneer of self-powered loudspeakers, trusted in world-class venues, theaters, and tours. Their CQ series continues to represent the perfect marriage of engineering precision and real-world usability.
FAQs About the Meyer Sound CQ-1
Is the CQ-1 still in production?
No, it’s a legacy product. However, it’s still widely available and supported by Meyer dealers.
What subs work best with CQ-1?
The 500-HP, 600-HP, or 700-HP are ideal matches, depending on output and size needs.
Can I fly or mount this speaker?
Yes. It includes rigging points and optional accessories for flown or ground-stacked deployments.
Is it weatherproof?
Standard models are for indoor use, though weather-protected versions are available.
What processors work with it?
It works best with Meyer’s Galileo™ or legacy LD processors, though basic EQ and delay can be handled by most professional DSPs.
How does it compare to modern point-source systems?
While newer systems offer reduced weight and advanced DSP, the CQ-1 remains revered for its clarity, durability, and plug-and-play simplicity.
Conclusion: A Legacy of Clarity and Control
The Meyer Sound CQ-1 may be part of the company’s legacy lineup, but it continues to deliver exceptional results in modern pro audio settings. With its wide coverage, powerful output, and proven reliability, this loudspeaker still earns a place on stage—and in the hearts of engineers worldwide.
Looking to add CQ-1 to your setup or replace an aging unit? Explore trusted options now at Sasphonik’s Pro Audio Shop.
